Keep your HVAC System Running Efficiently

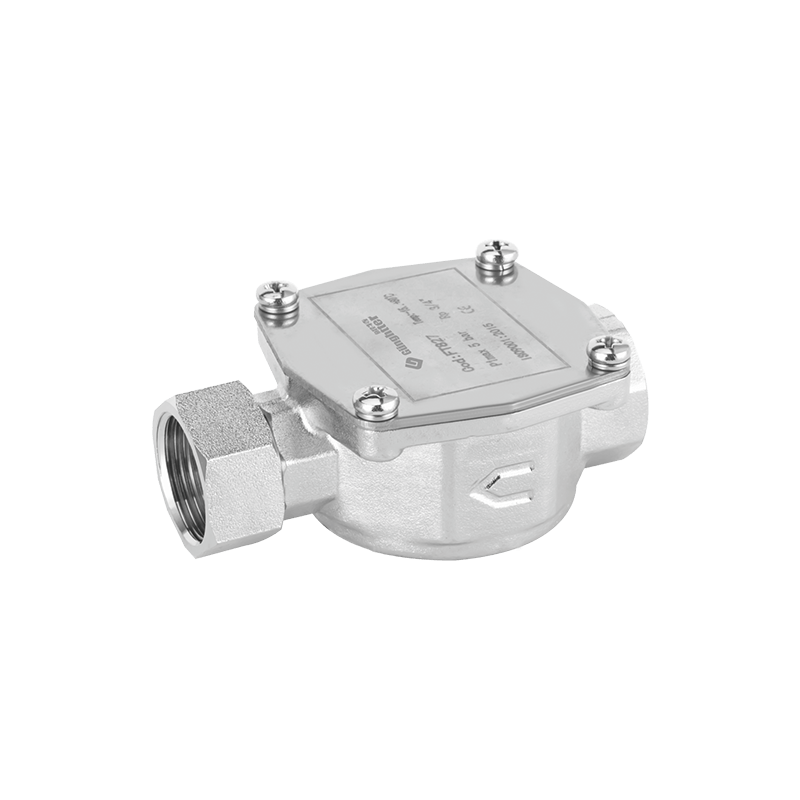

Suitable media: gas, natural gas, liquefied petroleum, air and other non-corrosive gases.
Key Performance: Large areas of filters in the filter compartment guarantee high accuracy of filtration and complete filtration of dust and impurities in the gas in the pipe, thereby reducing the maintenance costs of downstream equipment in the pipeline.
Operating temperature: -15 degrees C to 80 degrees C
Filter accuracy: ≤50um
1. Close the stop valve cyst, cut off the gas source, confirm that there is no gas in the gas filter;
2. Loosen the screws and open the lid;
3. Remove the filter, wash it with soapy water and clean the filter chamber carefully;
4. Reinstall the filter to ensure that the internal guide and filter element are safely
combined, tighten the screws and cover the lid;
5. Check the equipment for gas leaks.
| Specification | 1/2"M×1/2"F | 3/4"M×3/4"F | 1/2"M×3/4"F | 3/4"M×1/2"F |
| 1/2"F×1/2"F | 3/4"F×3/4"F | 1/2"F×3/4"F | 3/4"F×1/2"F |
